β’ 12,500 Total Square Feet
β’ Clear Floor Dimensions of 125β x 100
β’ 65 Foot Grid Height with 10β x 6β Bays
β’ 800,000 pounds Grid Weight Capacity
β’ Floor Etched to Reflect Rigging Grid
β’ 1,700 sq ft Dedicated Staging / Receiving
β’ 2 β Dock Bays with levelers and truck power
β’ 1 β Drive-In Ramp 14β² x 12β²
β’ 6 β 400 Amp, Three Phase Services
β’ 6 β 200 Amp, Three Phase Service
β’ 13 - 20 Amp Quad Box & Data Ports
β’ 1,815 sq ft Catering Lounge, seating for 60
β’ 462 sq Ft Kitchen Commissary/prep area
β’ 1 β Elevator 8β x 6β
β’ 1 β 1st Floor Office 33β x 22β
β’ 1 β 1st Floor Office 25β x 24β
β’ 1 β 2nd Floor Office 25β x 15β
β’ 1 β 2nd Floor Dressing Room 33β x 28β
β’ 1 β 2nd Floor Dressing Room 32β x 26β
β’ Every room includes: Power, WI-FI , & Access Control
β’ Clear Floor Dimensions of 125β x 100
β’ 65 Foot Grid Height with 10β x 6β Bays
β’ 800,000 pounds Grid Weight Capacity
β’ Floor Etched to Reflect Rigging Grid
β’ 1,700 sq ft Dedicated Staging / Receiving
β’ 2 β Dock Bays with levelers and truck power
β’ 1 β Drive-In Ramp 14β² x 12β²
β’ 6 β 400 Amp, Three Phase Services
β’ 6 β 200 Amp, Three Phase Service
β’ 13 - 20 Amp Quad Box & Data Ports
β’ 1,815 sq ft Catering Lounge, seating for 60
β’ 462 sq Ft Kitchen Commissary/prep area
β’ 1 β Elevator 8β x 6β
β’ 1 β 1st Floor Office 33β x 22β
β’ 1 β 1st Floor Office 25β x 24β
β’ 1 β 2nd Floor Office 25β x 15β
β’ 1 β 2nd Floor Dressing Room 33β x 28β
β’ 1 β 2nd Floor Dressing Room 32β x 26β
β’ Every room includes: Power, WI-FI , & Access Control

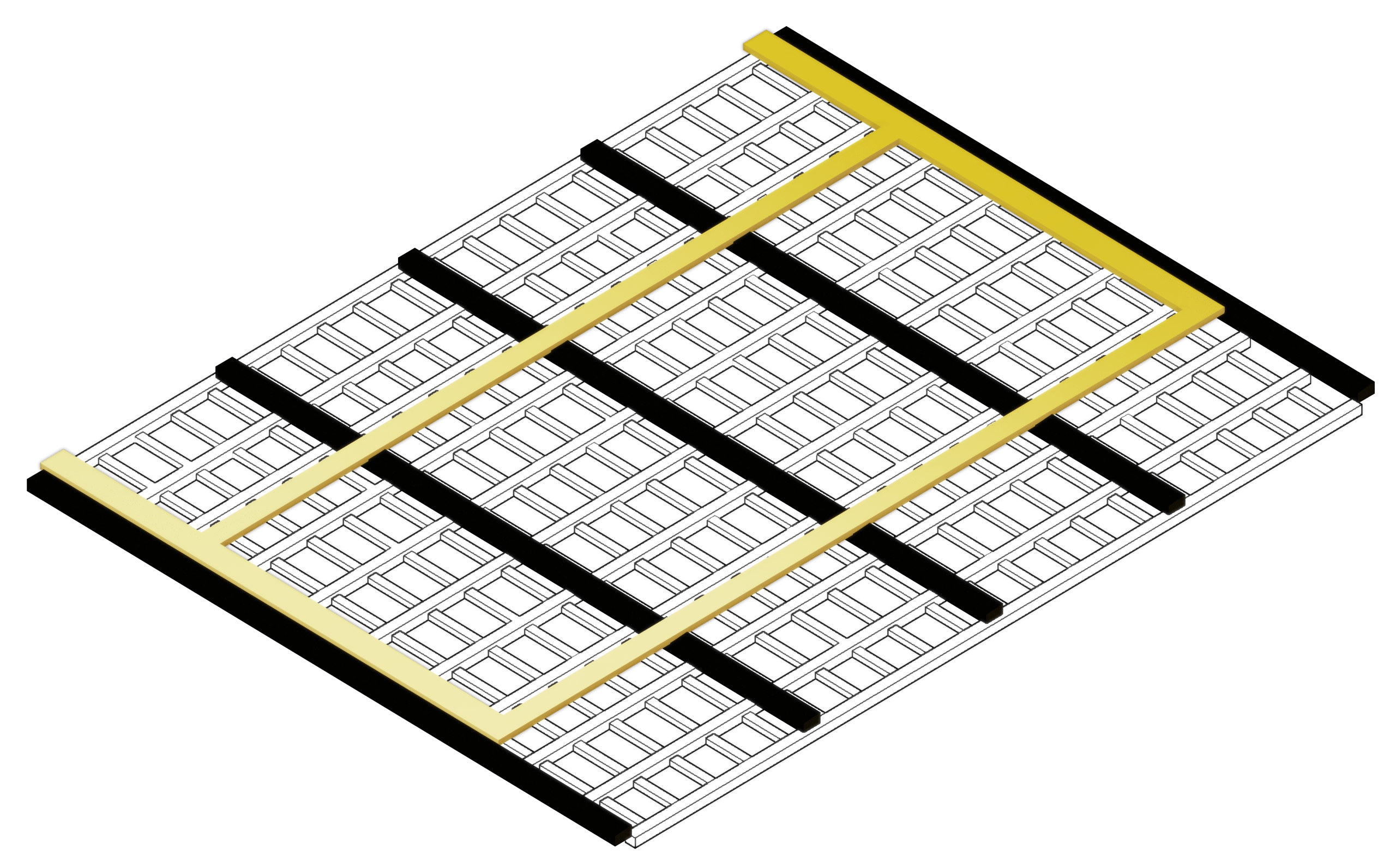

RIGGING SPECIFICATIONS
β’ 80 Foot Grid Height with 10β x 10β Bays
β’ 200,000 lbs. between each truss
β’ Two Endwalls at 100,000 lbs each
β’ 30,000 lbs. on W24 along length of beam
β’ 10,000 lbs. on W12*
*Loads on the W12 are included in the 20,000lbs W24 load
